 Python Tutorials (back to the list of tutorials)

Simple Panelization

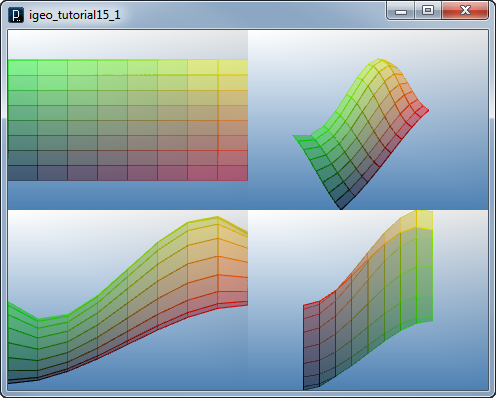

     Rectangular Panelization

You can panelize a surface with rectangular surfaces with simple for loop like the following.

add_library('igeo')

size( 480, 360, IG.GL )

#IG.open("surface1.3dm")  #input geometry from 3dm file
IG.open("surface1.obj")  #input geometry from OBJ file

surfs = IG.surfaces()

for surf in surfs :
    unum = 8
    vnum = 8
    uinc = 1.0/unum
    vinc = 1.0/vnum
    for i in range(unum) :
        for j in range(vnum) :
            pt11 = surf.pt( i*uinc, j*vinc )
            pt21 = surf.pt( (i+1)*uinc, j*vinc )
            pt12 = surf.pt( i*uinc, (j+1)*vinc )
            pt22 = surf.pt( (i+1)*uinc, (j+1)*vinc )
            ISurface(pt11, pt21, pt22, pt12).clr(i*uinc,j*vinc,0)
    surf.del()

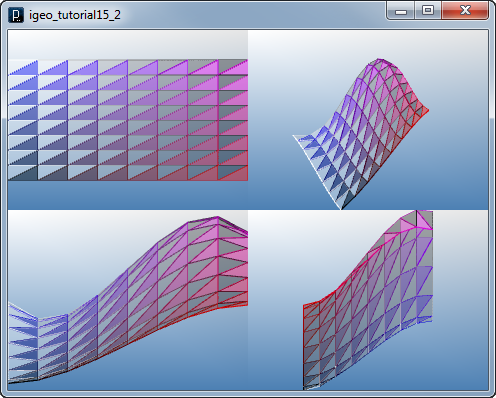

     Triangulation

The simplest way to triangulate a surface is to put two triangles at the rectangular area dividing it at the diagonal line.

add_library('igeo')

size( 480, 360, IG.GL )

#IG.open("surface1.3dm")  #input geometry from 3dm file
IG.open("surface1.obj") #input geometry from OBJ file

surfs = IG.surfaces()

for surf in surfs :
    unum = 8
    vnum = 8
    uinc = 1.0/unum
    vinc = 1.0/vnum
    for i in range(unum) :
        for j in range(vnum) :
            pt11 = surf.pt( i*uinc, j*vinc )
            pt21 = surf.pt( (i+1)*uinc, j*vinc )
            pt12 = surf.pt( i*uinc, (j+1)*vinc )
            pt22 = surf.pt( (i+1)*uinc, (j+1)*vinc )
            ISurface(pt11, pt21, pt22).clr(i*uinc,0,j*vinc)
            ISurface(pt22, pt12, pt11).clr(1-i*uinc)
    surf.del()

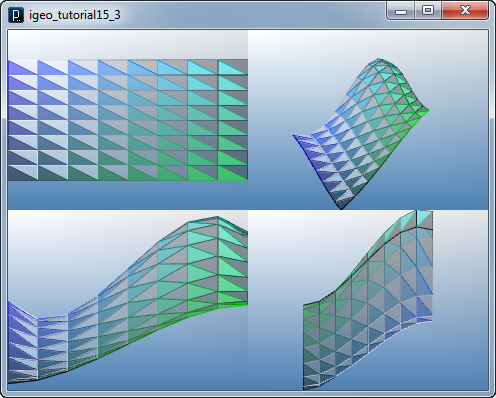

You can alternate the diagonal line by changing the sequence of points to create triangular surfaces.

add_library('igeo')

size( 480, 360, IG.GL )

#IG.open("surface1.3dm")  #input geometry from 3dm file
IG.open("surface1.obj") #input geometry from OBJ file

surfs = IG.surfaces()

for surf in surfs :
    unum = 8
    vnum = 8
    uinc = 1.0/unum
    vinc = 1.0/vnum
    for i in range(unum) :
        for j in range(vnum) :
            pt11 = surf.pt( i*uinc, j*vinc )
            pt21 = surf.pt( (i+1)*uinc, j*vinc )
            pt12 = surf.pt( i*uinc, (j+1)*vinc )
            pt22 = surf.pt( (i+1)*uinc, (j+1)*vinc )
            ISurface(pt11, pt21, pt12).clr(0,i*uinc,j*vinc)
            ISurface(pt12, pt21, pt22).clr(1-i*uinc)
    surf.del()

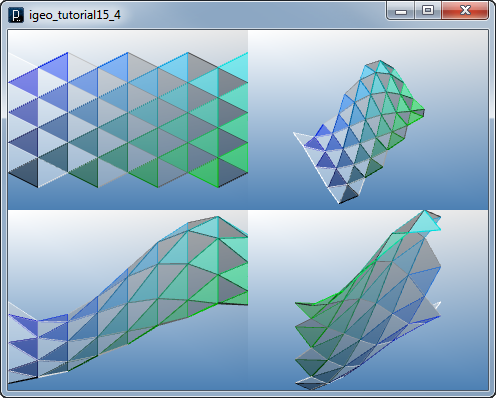

     Diagrid Triangulation

Another way to triangulate a surface is to apply the diagrid logic using the if condition if( (i+j)%2 == 0 ).

add_library('igeo')

size( 480, 360, IG.GL )

#IG.open("surface1.3dm")  #input geometry from 3dm file
IG.open("surface1.obj") #input geometry from OBJ file

surfs = IG.surfaces()

for surf in surfs :
    unum = 8
    vnum = 8
    uinc = 1.0/unum
    vinc = 1.0/vnum
    for i in range(unum) :
        for j in range(vnum) :
            if (i+j)%2 == 0 :
                pt1 = surf.pt( i*uinc, j*vinc )
                pt2 = surf.pt( (i+1)*uinc, (j-1)*vinc )
                pt3 = surf.pt( (i+1)*uinc, (j+1)*vinc )
                ISurface(pt1, pt2, pt3).clr(0,i*uinc,j*vinc)
            else :
                pt1 = surf.pt( (i+1)*uinc, j*vinc )
                pt2 = surf.pt( i*uinc, (j+1)*vinc )
                pt3 = surf.pt( i*uinc, (j-1)*vinc )
                ISurface(pt1, pt2, pt3).clr(1-i*uinc)
    surf.del()

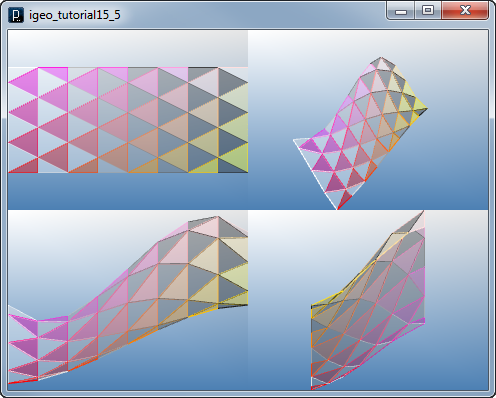

To have clear edge and corner condition to fill the original rectangular area of the input surface, you use if conditions to create filling geometries at the corners and the edges.

add_library('igeo')

size( 480, 360, IG.GL )

#IG.open("surface1.3dm")  #input geometry from 3dm file
IG.open("surface1.obj") #input geometry from OBJ file

surfs = IG.surfaces()
for surf in surfs :
    unum = 8
    vnum = 8
    uinc = 1.0/unum
    vinc = 1.0/vnum
    for i in range(unum) :
        for j in range(vnum) :
            if (i+j)%2 == 0 :
                pt1 = surf.pt( i*uinc, j*vinc )
                if j > 0 :
                    pt2 = surf.pt( (i+1)*uinc, (j-1)*vinc )
                else :
                    pt2 = surf.pt( (i+1)*uinc, j*vinc )
                if j < vnum-1 :
                    pt3 = surf.pt( (i+1)*uinc, (j+1)*vinc )
                else :
                    pt3 = surf.pt( (i+1)*uinc, j*vinc )
                ISurface(pt1, pt2, pt3).clr(1,i*uinc,j*vinc)
            else :
                pt1 = surf.pt( (i+1)*uinc, j*vinc )
                if j < vnum-1 :
                    pt2 = surf.pt( i*uinc, (j+1)*vinc )
                else :
                    pt2 = surf.pt( i*uinc, j*vinc )
                if j > 0 :
                    pt3 = surf.pt( i*uinc, (j-1)*vinc )
                else :
                    pt3 = surf.pt( i*uinc, j*vinc )
                ISurface(pt1, pt2, pt3).clr(1-i*uinc)
    surf.del()

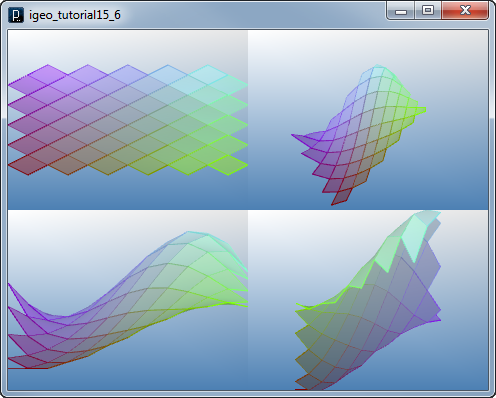

     Diamond Panelization

You can create diamond panels using the diagrid logic with the if condition of if( (i+j)%2 == 0 ).

add_library('igeo')

size( 480, 360, IG.GL )

#IG.open("surface1.3dm")  #input geometry from 3dm file
IG.open("surface1.obj") #input geometry from OBJ file

surfs = IG.surfaces()

for surf in surfs :
    unum = 10
    vnum = 10
    uinc = 1.0/unum
    vinc = 1.0/vnum
    for i in range(unum+1) :
        for j in range(vnum) :
            if (i+j)%2 == 0 :
                pt1 = surf.pt( (i-1)*uinc, j*vinc )
                pt2 = surf.pt( i*uinc, (j-1)*vinc )
                pt3 = surf.pt( (i+1)*uinc, j*vinc )
                pt4 = surf.pt( i*uinc, (j+1)*vinc )
                ISurface(pt1, pt2, pt3, pt4).clr(.5,i*uinc,j*vinc)
    surf.del()

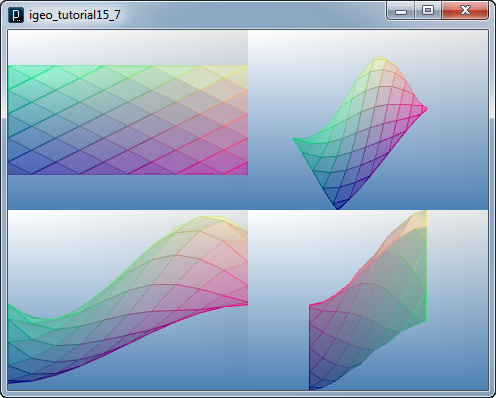

To have rectangular corners and edges, you use if conditions to create filling triangular surfaces.

add_library('igeo')

size( 480, 360, IG.GL )

#IG.open("surface1.3dm")  #input geometry from 3dm file
IG.open("surface1.obj") #input geometry from OBJ file

surfs = IG.surfaces()

for surf in surfs :
    unum = 10
    vnum = 10
    uinc = 1.0/unum
    vinc = 1.0/vnum
    for i in range(unum+1) :
        for j in range(vnum) :
            if (i+j)%2 == 0 :
                if i > 0 :
                    pt1 = surf.pt( (i-1)*uinc, j*vinc )
                else :
                    pt1 = surf.pt( i*uinc, j*vinc )
                if i < unum :
                    pt3 = surf.pt( (i+1)*uinc, j*vinc )
                else :
                    pt3 = surf.pt( i*uinc, j*vinc )
                if j > 0 :
                    pt2 = surf.pt( i*uinc, (j-1)*vinc )
                else :
                    pt2 = surf.pt( i*uinc, j*vinc )
                if j< vnum-1 :
                    pt4 = surf.pt( i*uinc, (j+1)*vinc )
                else :
                    pt4 = surf.pt( i*uinc, j*vinc )
                ISurface(pt1, pt2, pt3, pt4).clr(i*uinc,j*vinc,.5)
    surf.del()
