Panelization Examples

     Panelization Example7

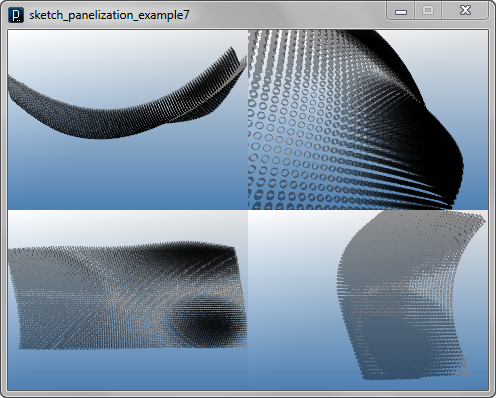

The following is an example of extruding circles with its depth controlled by a bitmap image.

surface7.3dm

The input bitmap used in the example is this.

import processing.opengl.*;
import igeo.*;

size(480, 360, IG.GL);

IG.open("surface7.3dm");
ISurface[] surfaces = IG.surfaces();

IImageMap map = new IImageMap("map4.jpg");

for (ISurface surf : surfaces) {
  int unum = 100, vnum = 50;
  double uinc = 1.0/unum, vinc = 1.0/vnum;

  for (int i=0; i < unum; i++) {
    for (int j=0; j < vnum; j++) {
      double val = map.get( i*uinc, j*vinc );

      IVec pt = surf.pt( i*uinc, j*vinc );
      IVec nml = surf.nml( i*uinc, j*vinc );

      ICircle cir = new ICircle(pt, nml, 0.1);

      IG.extrude(cir, val*-2).clr(0);
    }
  }
  surf.del();
}

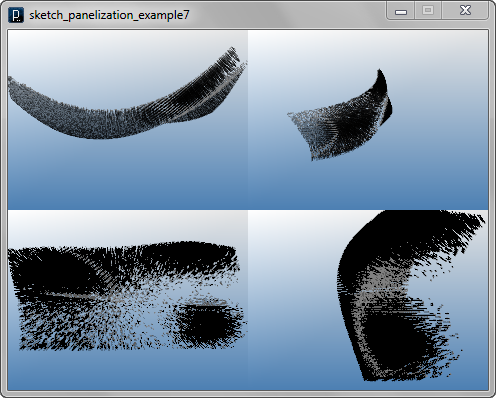

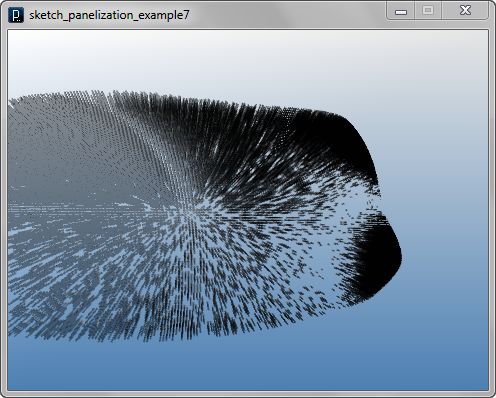

Then the generation of circles and surfaces are also controlled by a probabilistic switch responding to the bitmap input.

import processing.opengl.*;
import igeo.*;

size(480, 360, IG.GL);

IG.open("surface7.3dm");
ISurface[] surfaces = IG.surfaces();

IImageMap map = new IImageMap("map4.jpg");

for (ISurface surf : surfaces) {
  int unum = 200, vnum = 100;
  double uinc = 1.0/unum, vinc = 1.0/vnum;

  for (int i=0; i < unum; i++) {
    for (int j=0; j < vnum; j++) {
      double val = map.get( i*uinc, j*vinc );

      if (IRandom.percent(val*100)) {
        IVec pt = surf.pt( i*uinc, j*vinc );
        IVec nml = surf.nml( i*uinc, j*vinc );
        ICircle cir = new ICircle(pt, nml, 0.05);

        IG.extrude(cir, -2*val).clr(0);
      }
    }
  }
  surf.del();
}


(back to the list of tutorials)
