Multi-Agent on A Surface (requires iGeo version 7.4.0 or higher)

     Line Agent on A Surface

This section shows techniques to have agents running on a surface. The basic logic to do it is that, first, limit the behavior of the agents mostly within 2 dimensional x-y plane and within the range of 0.0 - 1.0 in x and y, secondly map the x-y location of agent as u-v parameter of the surface, to get 3 dimensional location on the surface, and thirdly, use the mapped x-y-z coordinates (vector) to create geometries of the agents.

The example below shows how to re-write the line branching agents shown before (without collision detection) to have them on a surface.

import processing.opengl.*;
import igeo.*;

void setup() {
  size(480, 360, IG.GL);

  IG.duration(120);
  IG.open("surface13.3dm");
  ISurface srf = IG.surface(0);//first surface in the server
  srf.del();
  for (int i=0; i < 120; i++) {
    new LineAgentOnSurface(new IVec(IRandom.get(),0,0),//random only in x
                           new IVec(0,0.01,0),//direction is y. length is less than 1.0
                           srf).clr(0);
  }
}

class LineAgentOnSurface extends IAgent {
  IVec pos;
  IVec dir;
  ISurface surf;

  LineAgentOnSurface(IVec pt, IVec dir, ISurface s) {
    pos = pt;
    this.dir = dir;
    surf = s;
  }

  public void update() {
    if(pos.x < 0 || pos.x > 1.0){ //out of u-v boundary
      del();
      return;
    }

    IVec pos2 = pos.dup().add(dir);
    IVec srfPt = surf.pt(pos.x, pos.y);
    IVec srfPt2 = surf.pt(pos2.x, pos2.y);
    new ICurve(srfPt, srfPt2).clr(clr());

    for (int i=0; i < 2; i++) {
      if (IRandom.percent(50)) {
        IVec dir2 = dir.dup();
        double angle = IRandom.get(-PI/20, PI/20);
        dir2.rot(new IVec(0, 0, 1), angle);

        int r = clr().getRed() + IRandom.getInt(-10, 10);
        int g = clr().getGreen() + IRandom.getInt(-10, 10);
        int b = clr().getBlue() + IRandom.getInt(-10, 10);
        new LineAgentOnSurface(pos2, dir2, surf).clr(r,g,b);
      }
    }
    del();
  }
}

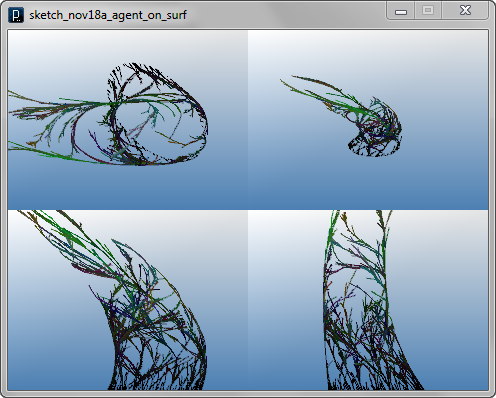

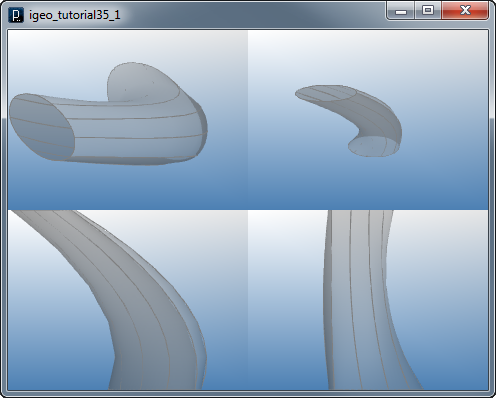

The below is the input surface to put the agents on. The file of the surface used in this example is this file.

surface13.3dm

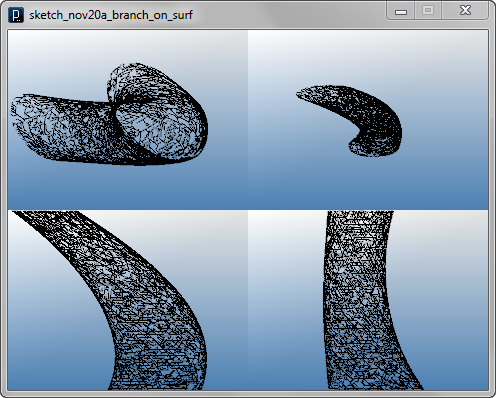

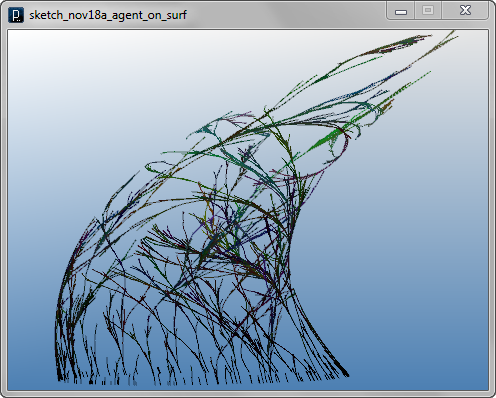

This is the result of the agents running on the input surface. at the line of
if(pos.x < 0 || pos.x > 1.0){
it checks if the x position of the agent is inside the boundary of u-v parameter of the surface ( 0.0 - 1.0 ) and if it's outside, it deletes itself. Then at these two lines,
IVec srfPt = surf.pt(pos.x, pos.y);
IVec srfPt2 = surf.pt(pos2.x, pos2.y);
The position of the agent is interpreted as u-v parameter of the surface and mapped onto the 3 dimensional location (IVec) on the surface. Another thing to be noted is that in the setup() method at the constructor of LineAgentOnSurface class,
    new LineAgentOnSurface(new IVec(IRandom.get(),0,0),
                                                  new IVec(0,0.01,0), srf)
the first argument is a vector variable to specify the starting location of the agent and it's set to be bottom of v direction on the surface. The second argument is another vector variable to specify the direction and the length of the line and the length is set to be smaller than 1.0 because the full range of the v parameter on the surface is 1.0. And at the third argument, it passes the base surface into the agent.


     Box Agent on A Surface

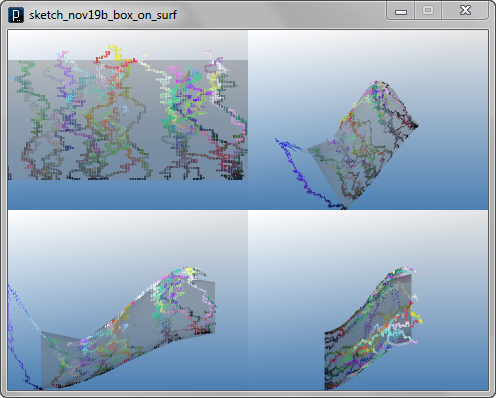

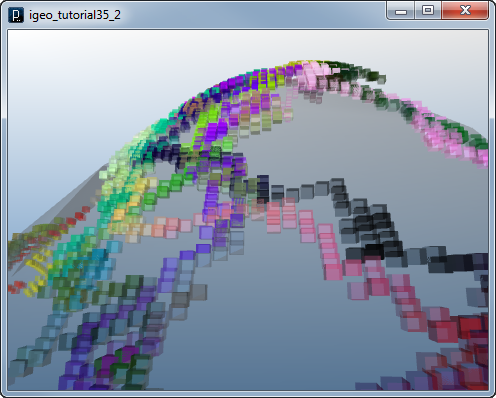

The following example re-writes the code of the box agent example shown before to map boxes onto the input surface.
First, the branching is limited into 3 direction (left/right/up) instead of 5 direction (left/right/up/down/above) and agents start where y is 0, and move up in y direction.
Secondly, because the amount of movement to create a new child agent happens in u-v parametric space, whereas the size of the box is defined in x-y-z 3D space, the variable size is used only for the size of box and not used to specify the amount of movement. Instead, there's another variable move inside update() method. Because now there are two different variables for the size of box and the distance to the next box and one is in x-y-z 3D space and another is in u-v 2D parametric space, it's difficult to align the faces of boxes which are next to each other. The output of this example shows overlapping boxes and gap between boxes.

The input surface used in the code is this file.

surface1.3dm

import processing.opengl.*;
import igeo.*;

void setup() {
  size(480, 360, IG.GL);
  IG.duration(300);
  IG.open("surface1.3dm");
  ISurface srf = IG.surface(0);//first surface in the server
  for (int i=0; i < 20; i++) {
    new MyAgent(new IVec(IRandom.get(),0,0),0.5,srf).clr(0);
  }
  IG.transparent(); //transparent graphic mode
}

class MyAgent extends IAgent {
  IVec pos;
  double size;
  ISurface surf;

  MyAgent(IVec pt, double sz, ISurface s) {
    pos = pt;
    size = sz;
    surf = s;
  }

  public void update() {
    IVec surfPt = surf.pt(pos.x, pos.y);
    new IBox(surfPt, size).clr(this.clr());
    IVec nextPos = pos.dup();
    double move=0.01; //less than 1.0
    //random direction
    double dir=IRandom.getInt(0, 2);
    if (dir==0) nextPos.add(move, 0, 0); //right
    else if (dir==1) nextPos.add(-move, 0, 0); //left
    else if (dir==2) nextPos.add(0, move, 0); //up

    // slightly chaning the color
    int r = clr().getRed() + IRandom.getInt(-10, 10);
    int g = clr().getGreen() + IRandom.getInt(-10, 10);
    int b = clr().getBlue() + IRandom.getInt(-10, 10);

    new MyAgent(nextPos, size, surf).clr(r,g,b);
    del();
  }
}

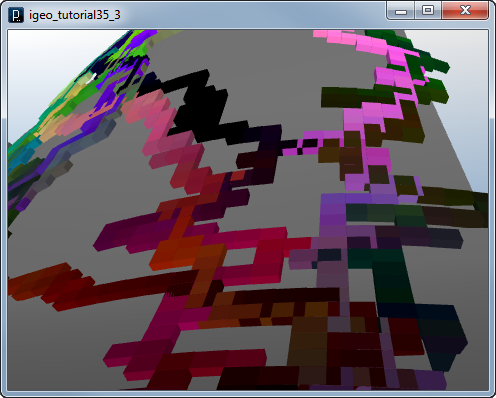

     Mapping Agents with U, V Tangent and Normal

If you use tangent vectors in u and v direction, and also normal vectors, you can put geometries along the internal grid of the NURBS surface. The example below shows a way to create boxes in u and v tangents and normal direction.
In this code, the variable size doesn't mean the size in x-y-z 3D space anymore but size in u-v 2D parametric space because the variable size controls the length of u and v tangent vectors. Because of this, the variable move which was in the previous code is removed again and size is used to define the amount of the movement to put child agent, like the original code. In this way, you can align the faces of boxes but it's not theoretically accurate but just approximation.

import processing.opengl.*;
import igeo.*;

void setup() {
  size(480, 360, IG.GL);
  IG.duration(300);
  IG.open("surface1.3dm");
  ISurface surf = IG.surface(0);
  for (int i=0; i < 20; i++) {
    new MyAgent(new IVec(IRandom.get(),0,0),0.01,surf).clr(0);
  }
  IG.transparent(); //transparent graphic mode
}

class MyAgent extends IAgent {
  IVec pos;
  double size;
  ISurface surf;

  MyAgent(IVec pt, double sz, ISurface s) {
    pos = pt;
    size = sz;
    surf = s;
  }

  public void update() {
    IVec utan = surf.utan(pos.x, pos.y);
    IVec vtan = surf.vtan(pos.x, pos.y);
    IVec nml = surf.nml(pos.x, pos.y);
    IVec surfPt = surf.pt(pos.x, pos.y);

    utan.mul(size); //original length of u tangent vector is almost full width of surface in u.
    vtan.mul(size); //original length of v tangent vector is almost full height of surface in v.
    nml.mul(size*size); //original length of normal vector is multiplication of u tangent and v tangent

    new IBox(surfPt,utan,vtan,nml).clr(this.clr());
    IVec nextPos = pos.dup();
    //random direction
    double dir=IRandom.getInt(0, 2);
    if (dir==0) nextPos.add(size, 0, 0); //right
    else if (dir==1) nextPos.add(-size, 0, 0); //left
    else if (dir==2) nextPos.add(0, size, 0); //up

    // slightly chaning the color
    int r = clr().getRed() + IRandom.getInt(-10, 10);
    int g = clr().getGreen() + IRandom.getInt(-10, 10);
    int b = clr().getBlue() + IRandom.getInt(-10, 10);
    new MyAgent(nextPos, size, surf).clr(r, g, b);

    del();
  }
}

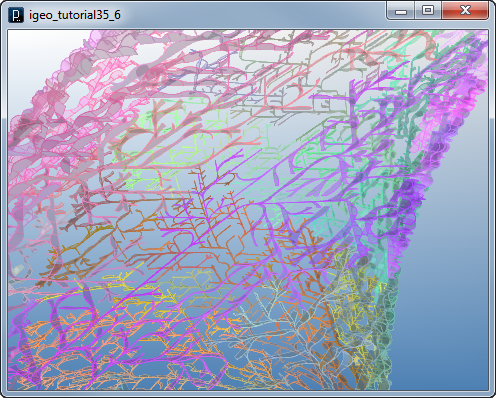

     Another Example of Mapping Agent on A Surface

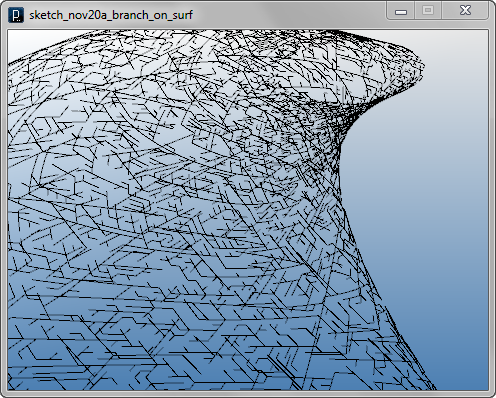

Here is another example of mapping agents on a surface. This example re-writes the branching agents with collision detection shown before to have agents on an input surface. The agents are taking an input surface when it's constructed through the constructor. The interact(IDynamics) method has no change from the original branching algorithm but the update() method has change to map two end points of the line onto the surface. The update() method also has additional lines to remove agents who get out of the boundary of u-v parameter space (0.0 - 1.0 in each u and v direction) on the input NURBS surface.

import processing.opengl.*;
import igeo.*;

void setup(){
  size(480, 360, IG.GL);
  IG.duration(200);
  IG.open("surface13.3dm");
  ISurface surf = IG.surface(0);
  surf.del();
  new LineAgent(new IVec(0,0,0), new IVec(1,0,0),surf);
}

static class LineAgent extends IAgent{
  static double length = 0.01; //length in u-v space, less than 1.0
  static double clearance = 0.0099; //less than length

  IVec pt1, pt2;
  boolean isColliding=false;
  ISurface surf;

  LineAgent(IVec pt, IVec dir, ISurface s){
    pt1 = pt;
    pt2 = pt.dup().add(dir.dup().len(length));
    surf = s;
  }

  void interact(IDynamics agent){
    if(time == 0){ //only in the first time
      if(agent instanceof LineAgent){
        LineAgent lineAgent = (LineAgent)agent;
        // checking clearance of end point
        if(lineAgent.pt2.dist(pt2) < clearance){
          isColliding=true;
        }
      }
    }
  }

  void update(){
    // is inside surface?
    if(pt2.x < 0.0||pt2.x > 1.0||pt2.y < 0.0||pt2.y > 1.0){
      isColliding = true;
    }

    if(isColliding){
      del();
    }
    else if(time == 0){ //if not colliding
      IVec surfPt1 = surf.pt(pt1.x, pt1.y);
      IVec surfPt2 = surf.pt(pt2.x, pt2.y);
      new ICurve(surfPt1,surfPt2).clr(0);

      IVec dir = pt2.dif(pt1);
      if(IRandom.percent(40)){ //bend
        new LineAgent(pt2,dir.dup().rot(IG.zaxis,PI/3),surf);
      }
      if(IRandom.percent(40)){ //bend the other way
        new LineAgent(pt2,dir.dup().rot(IG.zaxis,-PI/3),surf);
      }
      if(IRandom.percent(80)){ //straight
        new LineAgent(pt2,dir.dup(),surf);
      }
    }
  }
}

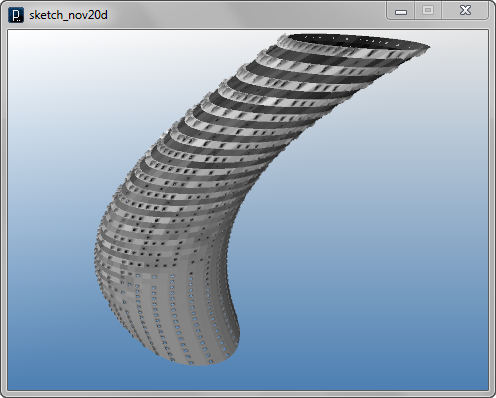

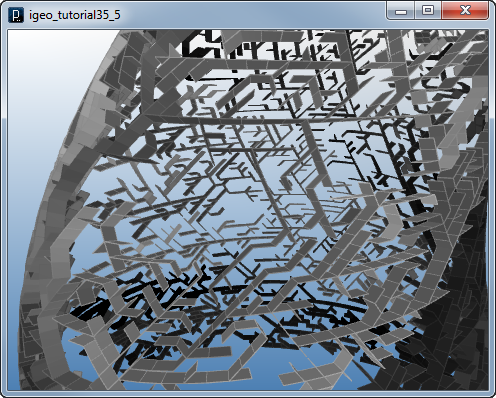

The code below creates a fin surface instead of line. It gets offset points on the surface in a specified depth to get two more points out of the two end points of the line. Additionally, color differentiation algorithm in gray scale is also inserted.

import processing.opengl.*;
import igeo.*;

void setup(){
  size(480, 360, IG.GL);
  IG.duration(200);
  IG.open("surface13.3dm");
  ISurface surf = IG.surface(0);
  surf.del();
  new LineAgent(new IVec(0,0,0), new IVec(1,0,0),surf).clr(0.2);
}

static class LineAgent extends IAgent{
  static double length = 0.01; //length in u-v space, less than 1.0
  static double clearance = 0.0099; //less than length

  IVec pt1, pt2;
  boolean isColliding=false;
  ISurface surf;

  LineAgent(IVec pt, IVec dir, ISurface s){
    pt1 = pt;
    pt2 = pt.dup().add(dir.dup().len(length));
    surf = s;
  }

  void interact(IDynamics agent){
    if(time == 0){ //only in the first time
      if(agent instanceof LineAgent){
        LineAgent lineAgent = (LineAgent)agent;
        // checking clearance of end point
        if(lineAgent.pt2.dist(pt2) < clearance){
          isColliding=true;
        }
      }
    }
  }

  void update(){
    // is inside surface?
    if(pt2.x < 0.0||pt2.x > 1.0||pt2.y < 0.0||pt2.y > 1.0){
      isColliding = true;
    }

    if(isColliding){
      del();
    }
    else if(time == 0){ //if not colliding
      IVec surfPt1 = surf.pt(pt1.x, pt1.y);
      IVec surfPt2 = surf.pt(pt2.x, pt2.y);

      double offsetDepth = 1;
      IVec surfPt1d = surf.pt(pt1.x, pt1.y, offsetDepth);
      IVec surfPt2d = surf.pt(pt2.x, pt2.y, offsetDepth);
      new ISurface(surfPt1,surfPt2,surfPt2d,surfPt1d).clr(clr());

      // slightly chaning the gray color
      int gray = (clr().getRed()+clr().getGreen()+clr().getBlue())/3;
      gray += IRandom.getInt(-10, 10);

      IVec dir = pt2.dif(pt1);
      if(IRandom.percent(40)){ //bend
        new LineAgent(pt2,dir.dup().rot(IG.zaxis,PI/3),surf).clr(gray);
      }
      if(IRandom.percent(40)){ //bend the other way
        new LineAgent(pt2,dir.dup().rot(IG.zaxis,-PI/3),surf).clr(gray);
      }
      if(IRandom.percent(80)){ //straight
        new LineAgent(pt2,dir.dup(),surf).clr(gray);
      }
    }
  }
}

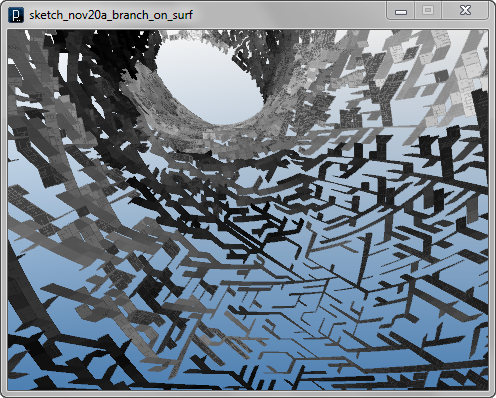

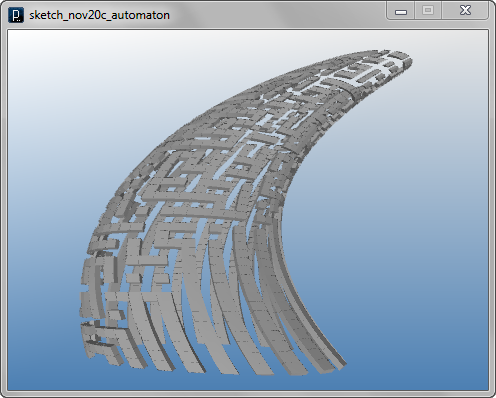

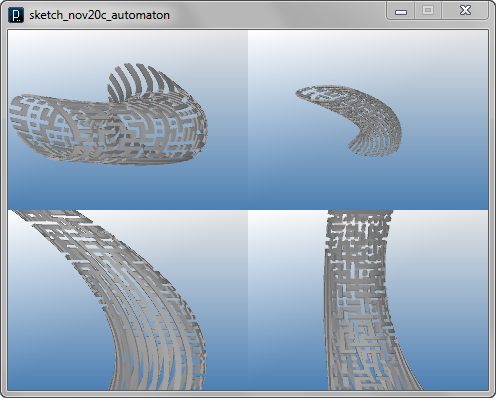

The code below combines the code above and the geometric technique to put continous curvature keeping the same tangency shown in this section. The surface is created taking 3 by 2 control points and 3 of them are midpoint of the current agent, end point of the current agent and midpoint of the next agent. Other 3 are offset points of those 3 points on the surface. Additionally, the offset depth of the second control point of the first 3 points is controlled by the agent too. It alternates the value making it smaller or larger than the offset depth of the end points.

import processing.opengl.*;
import igeo.*;

void setup(){
  size(480, 360, IG.GL);
  IG.duration(200);
  IG.open("surface13.3dm");
  ISurface surf = IG.surface(0);
  surf.del();
  new LineAgent(new IVec(0,0,0),new IVec(1,0,0),surf,0.5,0.1).clr(0.5);
}

static class LineAgent extends IAgent{
  static double length = 0.01; //length in u-v space, less than 1.0
  static double clearance = 0.0099; //less than length

  IVec pt1, pt2;
  boolean isColliding=false;
  ISurface surf;
  double offsetDepth1, offsetDepth2;

  LineAgent(IVec pt, IVec dir, ISurface s,
            double depth1, double depth2){
    pt1 = pt;
    pt2 = pt.dup().add(dir.dup().len(length));
    surf = s;
    offsetDepth1 = depth1;
    offsetDepth2 = depth2;
  }

  void interact(IDynamics agent){
    if(time == 0){ //only in the first time
      if(agent instanceof LineAgent){
        LineAgent lineAgent = (LineAgent)agent;
        // checking clearance of end point
        if(lineAgent.pt2.dist(pt2) < clearance){
          isColliding=true;
        }
      }
    }
  }

  void update(){
    // is inside surface?
    if(pt2.x < 0.0||pt2.x > 1.0||pt2.y < 0.0||pt2.y > 1.0){
      isColliding = true;
    }

    if(isColliding){
      del();
    }
    else if(time == 0){ //if not colliding
      //midpoint of the current agent
      IVec mid = pt1.mid(pt2);
      IVec surfPt1 = surf.pt(mid.x, mid.y);
      IVec surfPt1d = surf.pt(mid.x, mid.y, offsetDepth1);

      //end point of the current agent
      IVec surfPt2 = surf.pt(pt2.x, pt2.y);
      IVec surfPt2d = surf.pt(pt2.x, pt2.y, offsetDepth2);

      double nextDepth = 0;
      //alternating offsetDepth2
      if(offsetDepth2 > offsetDepth1){
        nextDepth = offsetDepth1-(offsetDepth2-offsetDepth1);
      }
      else{
        nextDepth = offsetDepth1+(offsetDepth1-offsetDepth2);
      }

      // slightly chaning the color
      int r = clr().getRed() + IRandom.getInt(-10, 10);
      int g = clr().getGreen() + IRandom.getInt(-10, 10);
      int b = clr().getBlue() + IRandom.getInt(-10, 10);

      IVec dir = pt2.dif(pt1);
      if(IRandom.percent(40)){ //bend
        IVec nextDir = dir.dup().rot(IG.zaxis,PI/3);
        //midpoint of the next agent
        IVec mid2 = pt2.cp(nextDir.dup().len(length/2));
        IVec surfPt3 = surf.pt(mid2.x,mid2.y);
        IVec surfPt3d = surf.pt(mid2.x,mid2.y,offsetDepth1);
        //3 by 2 control points
        IVec[][] cpts = new IVec[3][2];
        cpts[0][0] = surfPt1; cpts[0][1] = surfPt1d;
        cpts[1][0] = surfPt2; cpts[1][1] = surfPt2d;
        cpts[2][0] = surfPt3; cpts[2][1] = surfPt3d;
        //u degree 2, v degree 1 surface
        new ISurface(cpts, 2, 1).clr(clr());

        new LineAgent(pt2,nextDir,surf,offsetDepth1,nextDepth).clr(r,g,b);
      }
      if(IRandom.percent(40)){ //bend the other way
        IVec nextDir = dir.dup().rot(IG.zaxis,-PI/3);
        //midpoint of the next agent
        IVec mid2 = pt2.cp(nextDir.dup().len(length/2));
        IVec surfPt3 = surf.pt(mid2.x,mid2.y);
        IVec surfPt3d = surf.pt(mid2.x,mid2.y,offsetDepth1);
        //3 by 2 control points
        IVec[][] cpts = new IVec[3][2];
        cpts[0][0] = surfPt1; cpts[0][1] = surfPt1d;
        cpts[1][0] = surfPt2; cpts[1][1] = surfPt2d;
        cpts[2][0] = surfPt3; cpts[2][1] = surfPt3d;
        //u degree 2, v degree 1 surface
        new ISurface(cpts, 2, 1).clr(clr());

        new LineAgent(pt2,nextDir,surf,offsetDepth1,nextDepth).clr(r,g,b);
      }
      if(IRandom.percent(80)){ //straight
        IVec nextDir = dir;
        //midpoint of the next agent
        IVec mid2 = pt2.cp(nextDir.dup().len(length/2));
        IVec surfPt3 = surf.pt(mid2.x,mid2.y);
        IVec surfPt3d = surf.pt(mid2.x,mid2.y,offsetDepth1);
        IVec[][] cpts = new IVec[3][2];
        //3 by 2 control points
        cpts[0][0] = surfPt1; cpts[0][1] = surfPt1d;
        cpts[1][0] = surfPt2; cpts[1][1] = surfPt2d;
        cpts[2][0] = surfPt3; cpts[2][1] = surfPt3d;
        //u degree 2, v degree 1 surface
        new ISurface(cpts, 2, 1).clr(clr());

        new LineAgent(pt2,nextDir,surf,offsetDepth1,nextDepth).clr(r,g,b);
      }
    }
  }
}


     Cellular Automaton on A Surface

The code below shows an example to implement cellular automata on a surface. Although update mechanism of cellular automata on the code is the same with the previous automata example, the location of each automaton is fixed and only states of them propagate among automata who sits on the grid of the input surface. The panelization algorithm is used to locate automata on the grid of the input surface.
By changing the automaton's update rule table, you can change the behavior of the automaton, sometimes drastically. You can also change the behavior drastically by changing the initial state. On the code below, only the line at i==0 is initialized with the state 1.

import processing.opengl.*;
import igeo.*;

void setup(){
  size(480, 360, IG.GL);
  IG.duration(60);
  IG.open("surface13.3dm");
  ISurface surf = IG.surface(0);
  // put automaton as panel
  int unum=50, vnum=50;
  double uinc=1.0/unum, vinc=1.0/vnum;
  MyAutomaton[][] automata = new MyAutomaton[unum][vnum];
  for(int i=0; i < unum; i++){
    for(int j=0; j < vnum; j++){
      automata[i][j] =
        new MyAutomaton(new IVec(i*uinc, j*vinc, 0),
                        uinc, vinc, -1, surf);
    }
  }
  //connecting adjacent automata
  for(int i=0; i < unum; i++){
    for(int j=0; j < vnum; j++){
      if(i > 0){ automata[i][j].left=automata[i-1][j]; }
      if(i < unum-1){ automata[i][j].right=automata[i+1][j]; }
      if(j > 0){ automata[i][j].down=automata[i][j-1]; }
      if(j < vnum-1){ automata[i][j].up=automata[i][j+1]; }
      if(i==0){ automata[i][j].state = 1; } // activated
    }
  }
  surf.del();
  IG.fill();
}

class MyAutomaton extends IAgent{
  IVec pos;
  double width, height, depth;
  int state=0;
  int lst=0, rst=0, dst=0, ust=0;
  IBox box;
  ISurface surf;
  MyAutomaton left, right, up, down;

  MyAutomaton(IVec pt, double w, double h, double d,
              ISurface s){
    pos = pt; width = w; height = h; depth = d;
    surf = s;
  }

  void interact(ArrayList< IDynamics > agents){
    // reset states
    lst=0; rst=0; dst=0; ust=0;
    if(left!=null){ lst = left.state; }
    if(right!=null){ rst = right.state; }
    if(down!=null){ dst = down.state; }
    if(up!=null){ ust = up.state; }
  }

  void update(){
    if(state==0 && box!=null){
      synchronized(IG.lock){ // to suppress flickering of display update
        box.del();
        box = null;
      }
    }
    else if(state==1 && box==null){
      IVec[][][] boxPts = new IVec[2][2][2];
      boxPts[0][0][0] = surf.pt(pos.x, pos.y);
      boxPts[1][0][0] = surf.pt(pos.x+width, pos.y);
      boxPts[0][1][0] = surf.pt(pos.x, pos.y+height);
      boxPts[1][1][0] = surf.pt(pos.x+width, pos.y+height);
      boxPts[0][0][1] = surf.pt(pos.x, pos.y, depth);
      boxPts[1][0][1] = surf.pt(pos.x+width, pos.y, depth);
      boxPts[0][1][1] = surf.pt(pos.x, pos.y+height, depth);
      boxPts[1][1][1] = surf.pt(pos.x+width, pos.y+height, depth);
      box = new IBox(boxPts);
    }
    // automaton update rule table
    if(lst==0 && rst==0 && dst==0 && ust==0){ state=0; }
    else if(lst==1 && rst==0 && dst==0 && ust==0){ state=1; }
    else if(lst==0 && rst==1 && dst==0 && ust==0){ state=1; }
    else if(lst==1 && rst==1 && dst==0 && ust==0){ state=1; }
    else if(lst==0 && rst==0 && dst==1 && ust==0){ state=1; }
    else if(lst==1 && rst==0 && dst==1 && ust==0){ state=0; }
    else if(lst==0 && rst==1 && dst==1 && ust==0){ state=0; }
    else if(lst==1 && rst==1 && dst==1 && ust==0){ state=0; }
    else if(lst==0 && rst==0 && dst==0 && ust==1){ state=0; }
    else if(lst==1 && rst==0 && dst==0 && ust==1){ state=0; }
    else if(lst==0 && rst==1 && dst==0 && ust==1){ state=0; }
    else if(lst==1 && rst==1 && dst==0 && ust==1){ state=0; }
    else if(lst==0 && rst==0 && dst==1 && ust==1){ state=0; }
    else if(lst==1 && rst==0 && dst==1 && ust==1){ state=1; }
    else if(lst==0 && rst==1 && dst==1 && ust==1){ state=1; }
    else if(lst==1 && rst==1 && dst==1 && ust==1){ state=0; }
  }
}

The code above had interact method with the longer version of interact(ArrayList< IDynamics >). This is because the state variables of lst, rst, dst, ust are updated only once at the whole system update process. If you use interact(IDynamics), they are updated unnecessarily as many as the number of total agents in the system.

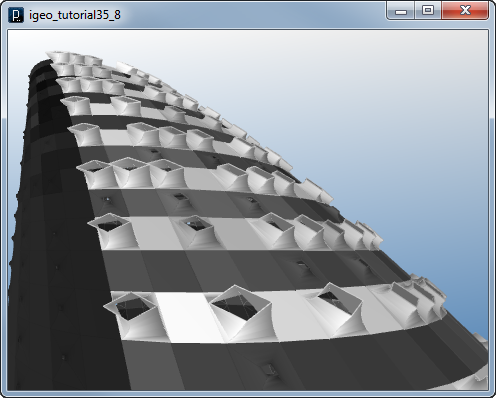

The code below shows an example to put diferent type of geometries on an automaton from a box. When the state of the automaton is 0, it puts simple rectangular panel, but when the state is 1, it puts a surface with an aperture whose size and depth corresponds the time length of the state being 1, by the integer variable count.

import processing.opengl.*;
import igeo.*;

void setup() {
  size(480, 360, IG.GL);
  IG.duration(60);
  IG.open("surface13.3dm");
  ISurface surf = IG.surface(0);
  // put automaton as panel
  int unum=50, vnum=50;
  double uinc=1.0/unum, vinc=1.0/vnum;
  MyAutomaton[][] automata = new MyAutomaton[unum][vnum];
  for (int i=0; i < unum; i++) {
    for (int j=0; j < vnum; j++) {
      automata[i][j] =
        new MyAutomaton(new IVec(i*uinc, j*vinc, 0),
                        uinc, vinc, 1, surf);
    }
  }
  //connecting adjacent automata
  for (int i=0; i < unum; i++) {
    for (int j=0; j < vnum; j++) {
      if(i > 0){ automata[i][j].left=automata[i-1][j]; }
      if(i < unum-1){ automata[i][j].right=automata[i+1][j]; }
      if(j > 0){ automata[i][j].down=automata[i][j-1]; }
      if(j < vnum-1){ automata[i][j].up=automata[i][j+1]; }
      if(i==0){ automata[i][j].state = 1; }
    }
  }
  surf.del();
  IG.fill();
}

class MyAutomaton extends IAgent {
  IVec pos;
  double width, height, depth;
  int state=0;
  ISurface panelSurf;
  ISurface surf;
  int lst=0, rst=0, ust=0, dst=0;
  MyAutomaton left, right, up, down;
  int count=0;

  MyAutomaton(IVec pt, double w, double h, double d,
              ISurface s) {
    pos = pt; width = w; height = h; depth = d;
    surf = s;
  }

  void interact(ArrayList< IDynamics > agents) {
    // reset states
    lst=0; rst=0; dst=0; ust=0;
    if(left!=null){ lst = left.state; }
    if(right!=null){ rst = right.state; }
    if(down!=null){ dst = down.state; }
    if(up!=null){ ust = up.state; }
  }

  void update() {
    int prevState = state;
    if(lst==0 && rst==0 && dst==0 && ust==0){ state=0; }
    else if(lst==1 && rst==0 && dst==0 && ust==0){ state=1; }
    else if(lst==0 && rst==1 && dst==0 && ust==0){ state=1; }
    else if(lst==1 && rst==1 && dst==0 && ust==0){ state=1; }
    else if(lst==0 && rst==0 && dst==1 && ust==0){ state=1; }
    else if(lst==1 && rst==0 && dst==1 && ust==0){ state=0; }
    else if(lst==0 && rst==1 && dst==1 && ust==0){ state=0; }
    else if(lst==1 && rst==1 && dst==1 && ust==0){ state=0; }
    else if(lst==0 && rst==0 && dst==0 && ust==1){ state=0; }
    else if(lst==1 && rst==0 && dst==0 && ust==1){ state=0; }
    else if(lst==0 && rst==1 && dst==0 && ust==1){ state=0; }
    else if(lst==1 && rst==1 && dst==0 && ust==1){ state=0; }
    else if(lst==0 && rst==0 && dst==1 && ust==1){ state=0; }
    else if(lst==1 && rst==0 && dst==1 && ust==1){ state=1; }
    else if(lst==0 && rst==1 && dst==1 && ust==1){ state=1; }
    else if(lst==1 && rst==1 && dst==1 && ust==1){ state=0; }

    if(state!=prevState){ // state change
      synchronized(IG.lock){ // to suppress flickering of display update
        if(panelSurf!=null) panelSurf.del();
        if(state==0){
          // just rectangular panel
          IVec[][] panelPts = new IVec[2][2];
          panelPts[0][0] = surf.pt(pos.x, pos.y);
          panelPts[1][0] = surf.pt(pos.x+width, pos.y);
          panelPts[0][1] = surf.pt(pos.x, pos.y+height);
          panelPts[1][1] = surf.pt(pos.x+width, pos.y+height);
          panelSurf = new ISurface(panelPts).clr(count*0.02);
        }
        else if(state==1){
          //4 by 3 control points
          IVec[][] panelPts = new IVec[4][3];
          //rectangular border
          panelPts[0][0] = surf.pt(pos.x, pos.y);
          panelPts[1][0] = surf.pt(pos.x+width, pos.y);
          panelPts[2][0] = surf.pt(pos.x+width, pos.y+height);
          panelPts[3][0] = surf.pt(pos.x, pos.y+height);
          //rotated central opening
          double angle = count*PI*0.0025;
          double factor = count*0.015;
          IVec center = surf.pt(pos.x+width/2, pos.y+height/2);
          IVec nml = surf.nml(pos.x+width/2, pos.y+height/2);
          panelPts[0][1] = panelPts[0][0].dup().scale(center, factor).rot(center, nml, angle);
          panelPts[1][1] = panelPts[1][0].dup().scale(center, factor).rot(center, nml, angle);
          panelPts[2][1] = panelPts[2][0].dup().scale(center, factor).rot(center, nml, angle);
          panelPts[3][1] = panelPts[3][0].dup().scale(center, factor).rot(center, nml, angle);
          //rotated and pushed central opening
          IVec shift = nml.dup().len(depth*count*0.02);
          panelPts[0][2] = panelPts[0][1].dup().add(shift).rot(center, nml, angle);
          panelPts[1][2] = panelPts[1][1].dup().add(shift).rot(center, nml, angle);
          panelPts[2][2] = panelPts[2][1].dup().add(shift).rot(center, nml, angle);
          panelPts[3][2] = panelPts[3][1].dup().add(shift).rot(center, nml, angle);
          // u degree 1, v degree 2, closed in u, open in v
          panelSurf = new ISurface(panelPts,1,2,true,false).clr(count*0.02);
        }
      }
    }
    if(state>0) count++; // count time of state being positive
  }
}


(back to the list of tutorials)

HOME
FOR PROCESSING
DOWNLOAD
DOCUMENTS
TUTORIALS (Java / Python)
GALLERY
SOURCE CODE(GitHub)
ABOUT
